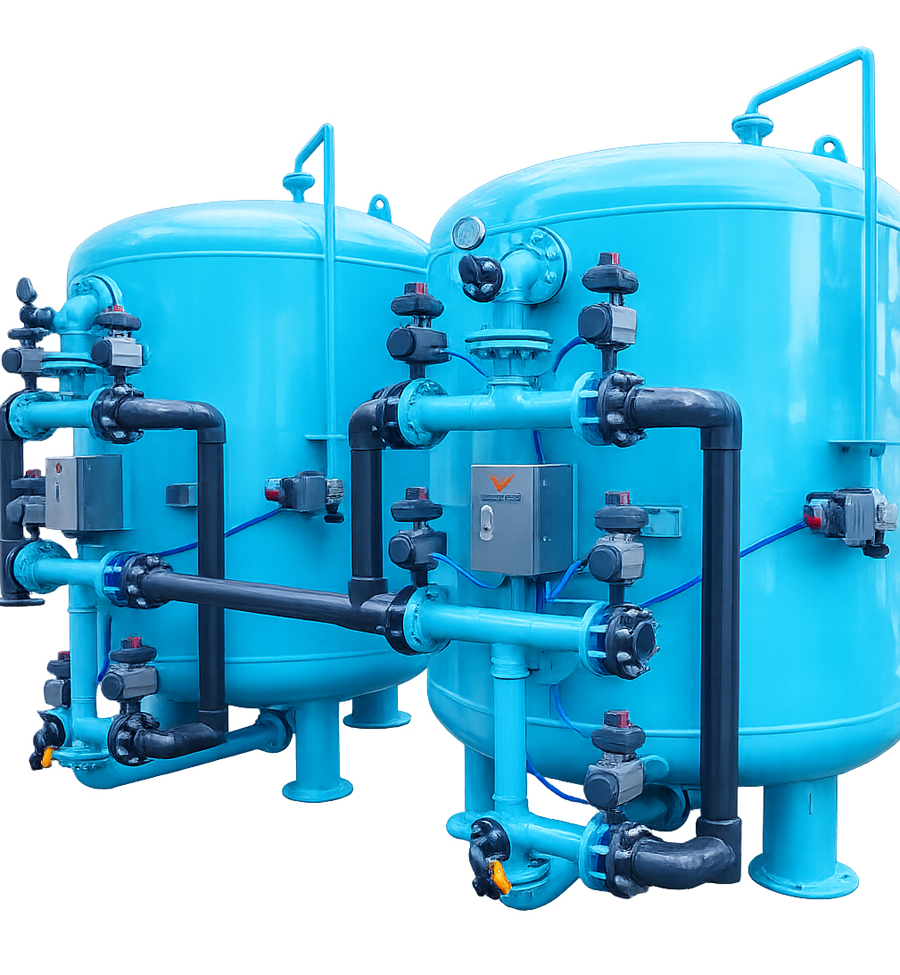

Protect Your Process with Reliable Water Media Filters.
Water media filters are pressure vessels filled with filtration media (sand, anthracite, garnet, activated carbon, etc.) designed to remove turbidity, suspended solids (TSS), sediment, color, taste/odor, and specific contaminants like iron—helping stabilize your water quality and protect downstream equipment such as RO, UF, EDI, UV, and ion exchange.
What Are Water Media Filters?
Media filters are depth filtration vessels where water passes through one or more layers of media. The layers capture suspended particles throughout the bed (not only at the surface), enabling longer run times before cleaning compared with some surface filters—especially at higher solids loading.
Depth filtration
Captures solids through the media bed, supporting higher dirt-holding capacity and longer service cycles.
Stable pretreatment

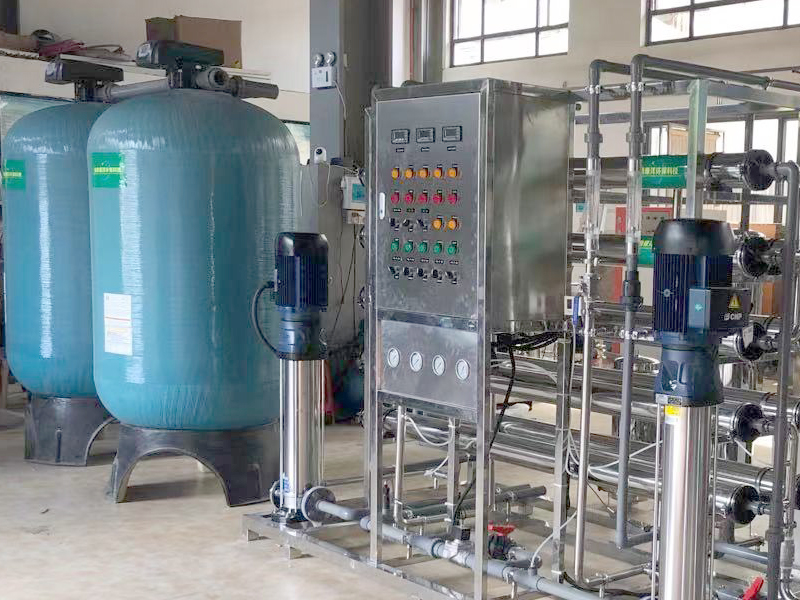

Often used ahead of RO/UF/EDI/UV to improve reliability and reduce downstream fouling and maintenance.
Industrial packaging
Available as skid systems with valves, gauges, DP monitoring, and manual or automatic backwash controls.
Water Media Filter Types
Choose media based on what you need to remove. Multi-layer beds typically improve performance across a wider particle size range.
Sand Filters (Single Media)
Classic pretreatment for sediment and turbidity reduction. A good baseline where solids are moderate and water quality is stable.
Best for: sediment, turbidity
Notes: backwash required
Multimedia Filters (Dual/Tri-Media)
Layered media (e.g., anthracite + sand + garnet) improves filtration over a wider range of particle sizes and reduces channeling risk.
Best for: TSS, SDI reduction
Typical layers: anthracite/sand/garnet

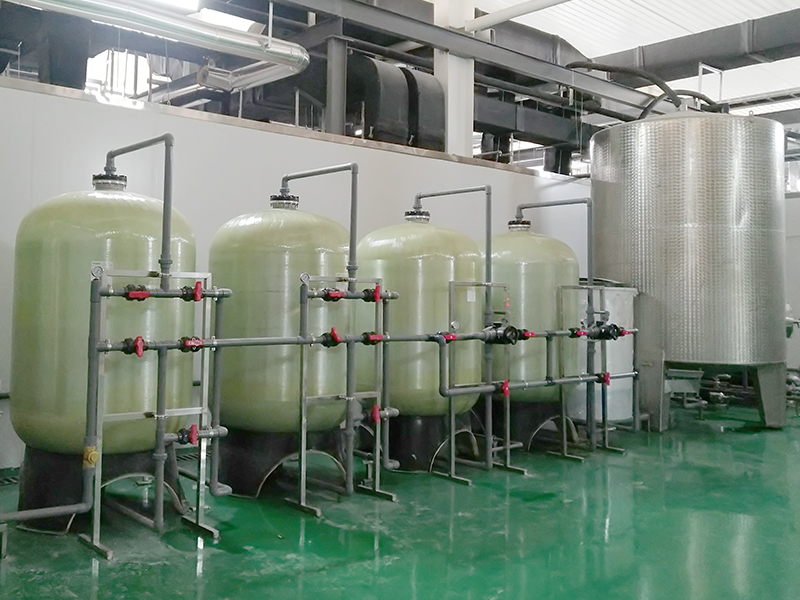

Activated Carbon Filters (ACF)
Used to reduce chlorine, taste/odor, and many organics. Common before RO/EDI when chlorine must be removed to protect membranes/resin.
Best for: chlorine, odor, organics
Notes: carbon selection matters
Iron / Specialty Media Filters
Specific media options can target iron, manganese, color, and nuisance contaminants depending on oxidation state and chemistry.
Best for: iron/color issues
Notes: confirm with water analysis
Manual vs Automatic Backwash
Manual valves fit simpler sites. Automatic systems use control valves/actuators and can trigger backwash by time or differential pressure.
Manual: lower CAPEX
Auto: higher uptime
FRP vs Steel Pressure Vessels
FRP vessels are corrosion resistant and lightweight. Steel tanks (epoxy-coated, stainless options) suit higher flows and industrial layouts.
FRP: corrosion resistant
Steel: heavy-duty

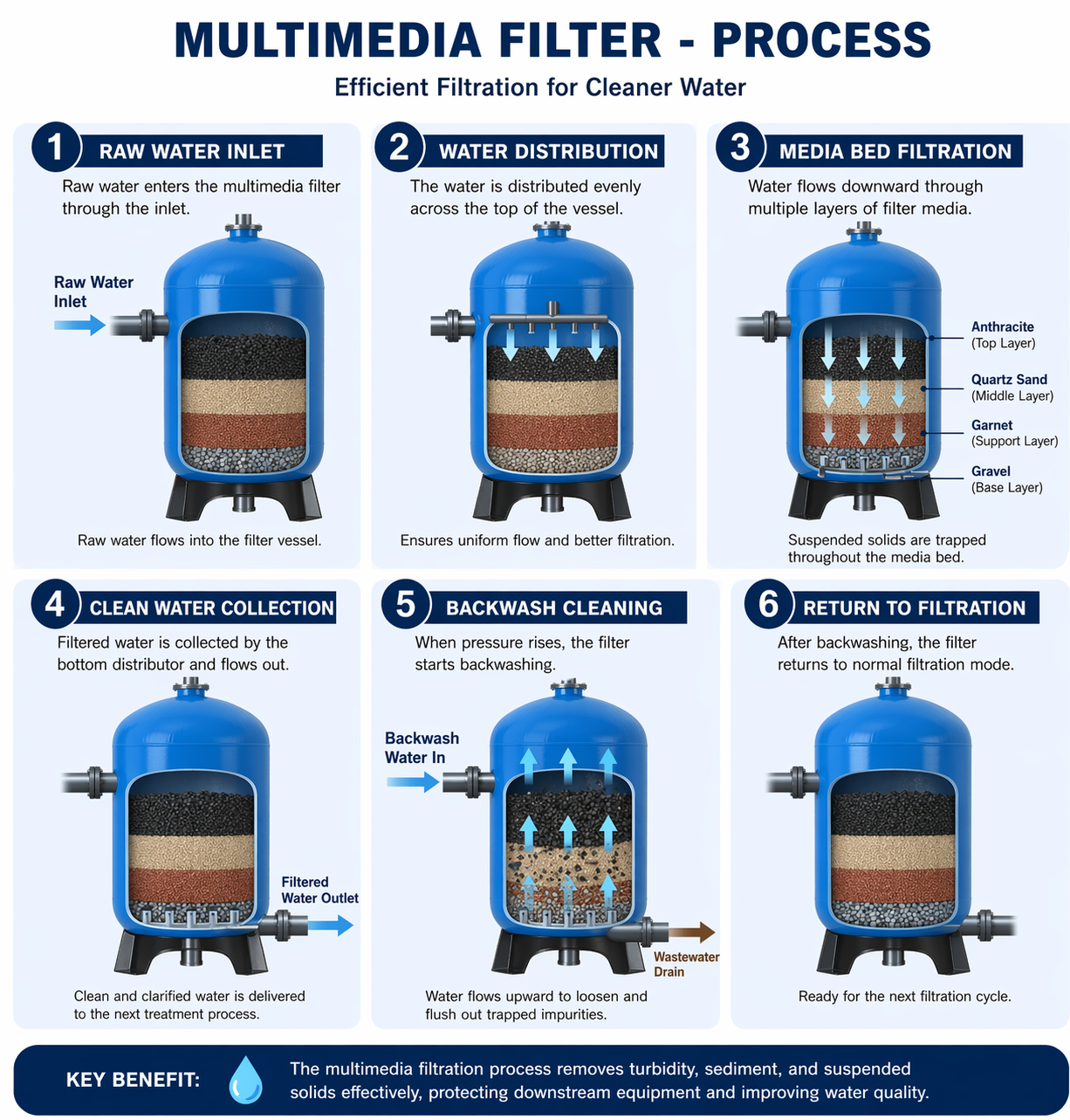

How Media Filtration Works
Water flows downward through the media bed during service. Particles are captured throughout the bed. When head loss (pressure drop) increases, the filter is cleaned by backwash (reverse/upflow).
Typical Operating Cycle
Service filtration → Rising DP (headloss) → Backwash/flush → Return to service
Service filtration → Rising DP (headloss) → Backwash/flush → Return to service
01. Service filtration
Feed water flows through media layers and suspended solids are retained across the bed depth.
02. Solids accumulate
As solids load increases, differential pressure rises and flow may begin to decrease.
03. Backwash trigger
Backwash is initiated by schedule, operator, or DP setpoint (depending on configuration).
04. Backwash
Upflow expands the media to release trapped solids; waste water is discharged per site routing.
Backwash & Maintenance: What Operators Care About
Backwash performance is the difference between a media filter that “works on paper” and one that works in real life. We design backwash rates, valve logic, and instrumentation to keep operations stable.
DP / Headloss Monitoring
Pressure gauges and DP indicators help teams know when the bed is loading and when backwash is required.
Backwash Water Supply
Ensure adequate backwash flow and pressure. Undersized backwash won’t expand the bed enough to clean it.
Waste Routing
Backwash water contains solids; routing to drain, collection, or treatment is site-specific and part of proper design.
Manual systems are simple and cost-effective. Automatic systems reduce operator workload and improve consistency—especially in 24/7 operations.
Optional accessories can improve reliability and simplify commissioning across industrial environments.
How to Choose a Water Media Filter
Selection is not just “pick a tank.” The right choice depends on solids type, target effluent quality, and backwash constraints.
| Input You Provide | Why It Matters | What We Configure |
| Max flow rate | Determines vessel diameter/quantity and service velocity. | Tank sizing, single vs duplex, valve sizing, piping. |
| Turbidity / TSS | Affects media choice and run time between backwash cycles. | Media layers, bed depth, backwash frequency. |
| Particle characteristics | Colloidal vs non-colloidal solids behave differently. | Multimedia vs sand, optional coagulation strategy (if applicable). |
| Target water quality | Defines filtration performance requirements. | Media selection, polishing stages, cartridge filter integration. |
| Backwash availability | Backwash needs adequate flow/pressure and waste routing. | Backwash rate, pump option, drain routing. |

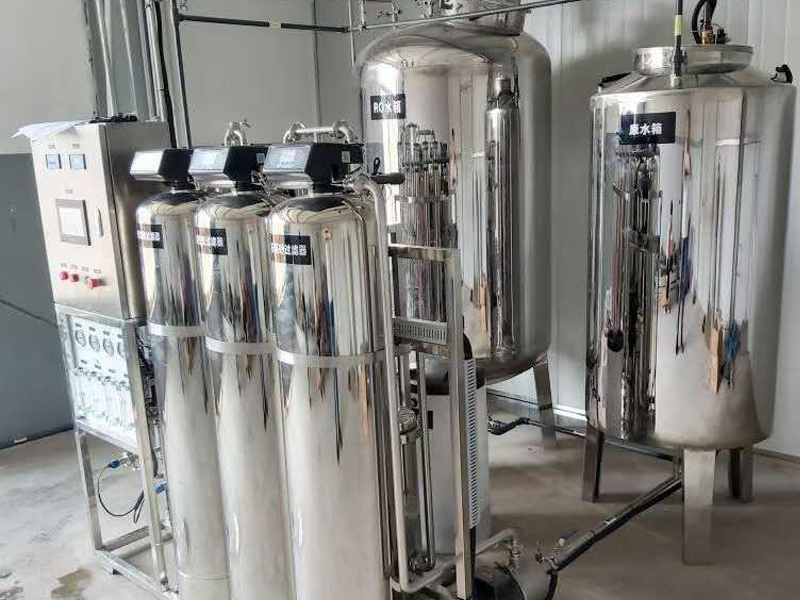

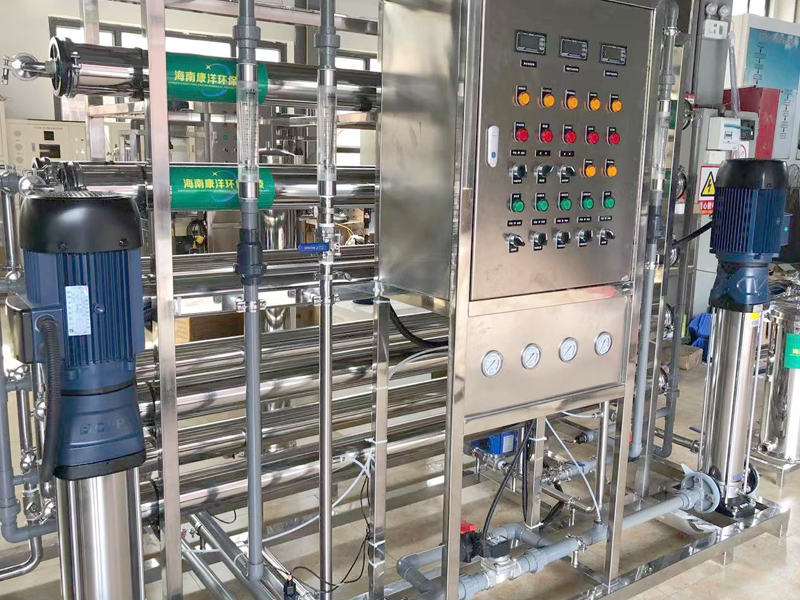

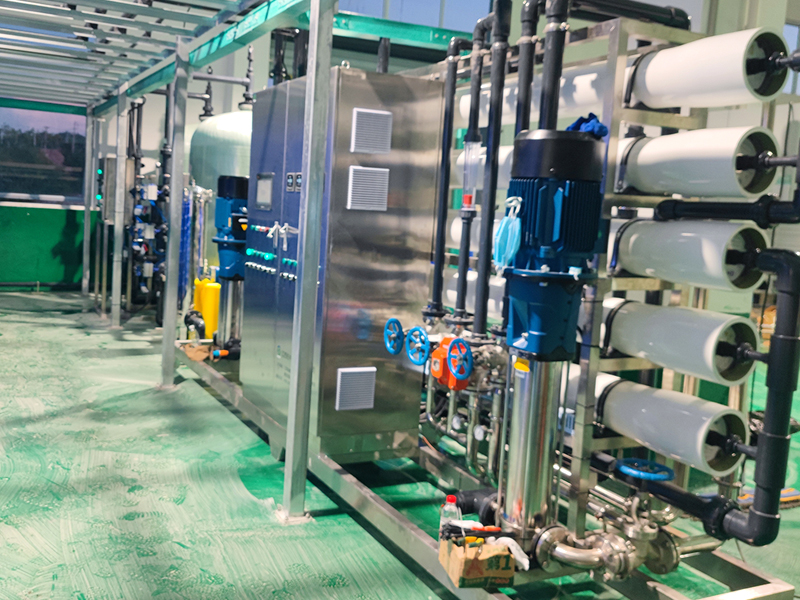

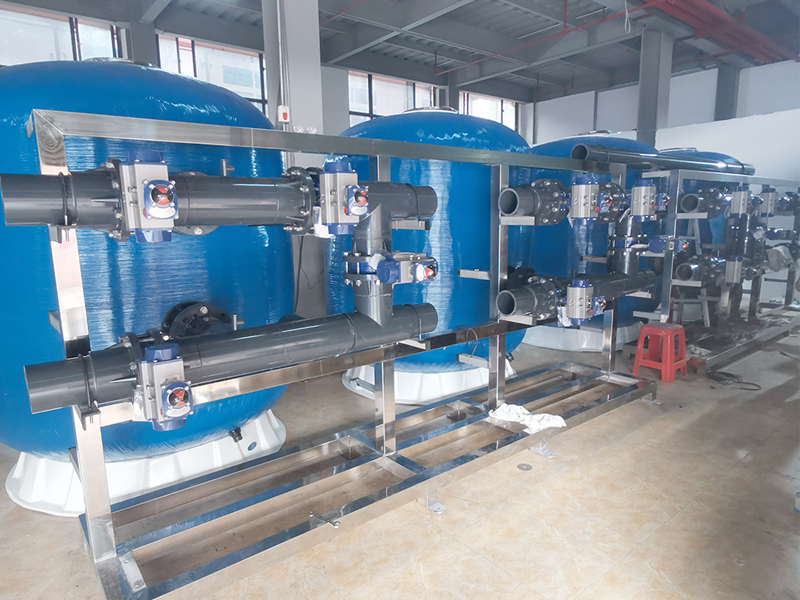

Applications
Where industrial and commercial media filters are commonly used as primary filtration or pretreatment.Selection is not just “pick a tank.” The right choice depends on solids type, target effluent quality, and backwash constraints.
Request a Quote / Talk to an Engineer
Send your flow rate, feed turbidity/TSS, and target effluent quality. We’ll recommend the right media type, tank size, and backwash strategy.
