Seawater RO Membranes for Desalination Systems
Seawater RO membranes are high-pressure separation elements used to remove dissolved salts from seawater and other high-salinity sources. They support freshwater production in coastal facilities, marine installations, industrial projects, and desalination plants.
Total Solution
Selecting the Right Seawater RO Membrane for Your Project
Seawater RO Membrane selection should balance permeate requirements, energy use, operating pressure, and replacement cost. The highest advertised rejection or rated output does not necessarily provide the most suitable result at the intended site.
For new installations, begin with a representative water analysis covering TDS, major ions, temperature, suspended solids, silica, and scaling potential. For replacements, include operating history and the original membrane reference.
Projected output and quality should be checked through model-specific calculations. Where tighter purity limits apply, downstream polishing or a second RO pass may be necessary.
For new installations, begin with a representative water analysis covering TDS, major ions, temperature, suspended solids, silica, and scaling potential. For replacements, include operating history and the original membrane reference.
Projected output and quality should be checked through model-specific calculations. Where tighter purity limits apply, downstream polishing or a second RO pass may be necessary.
High Salt Rejection
For seawater and high-salinity feedwater
4” & 8” Elements
Marine, industrial and municipal desalination
Pretreatment Support
Media, UF, cartridge and antiscalant guidance

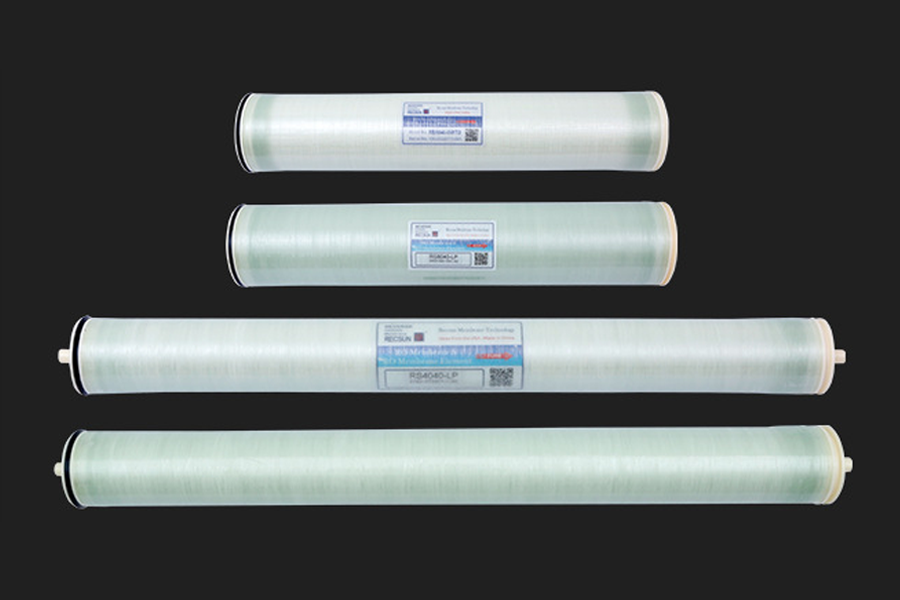

SWRO Membranes and Saltwater RO Membrane Options
Our seawater RO membrane product range is intended to help buyers evaluate elements for new desalination projects and existing equipment replacement. Selection should consider the required element size, nominal permeate capacity, salt rejection, operating pressure, and vessel configuration. Different membrane types may prioritize permeate quality, energy consumption, or operating conditions depending on the application.
Where Seawater Desalination Membranes Fit in the Treatment Train
SWRO membrane performance depends heavily on pretreatment, pressure vessel design, monitoring, and cleaning discipline.
1
Seawater Intake
Open intake, beach well, brine source, marine source, or offshore feed.
2
Pretreatment
Media filtration, UF, cartridge filters, chemical dosing, and SDI control.
3
High-Pressure RO
SWRO membranes remove salts under high-pressure operation.
4
Post-Treatment
pH correction, remineralization, disinfection, or polishing as required.
5
Fresh Water Use
Potable, process, marine, utility, irrigation, or industrial makeup water.
RFQ Checklist
What We Need to Recommend the Right SWRO Membrane
A good projection starts with real feedwater data and operating goals. This section helps engineers and procurement teams submit a quote-ready inquiry.
Key Features of Our Seawater RO Elements
99%
High Salt Rejection
SWRO membranes are selected for high TDS rejection, seawater desalination, and stable permeate quality under high-salinity conditions.
LE
Low-Energy Options
Low-energy seawater RO membranes support lower operating pressure targets when feedwater and pretreatment conditions allow.
AF
Anti-Fouling Support
Match SWRO elements with media filtration, UF, cartridge housings, dosing, and CIP planning to reduce fouling risk.
4”

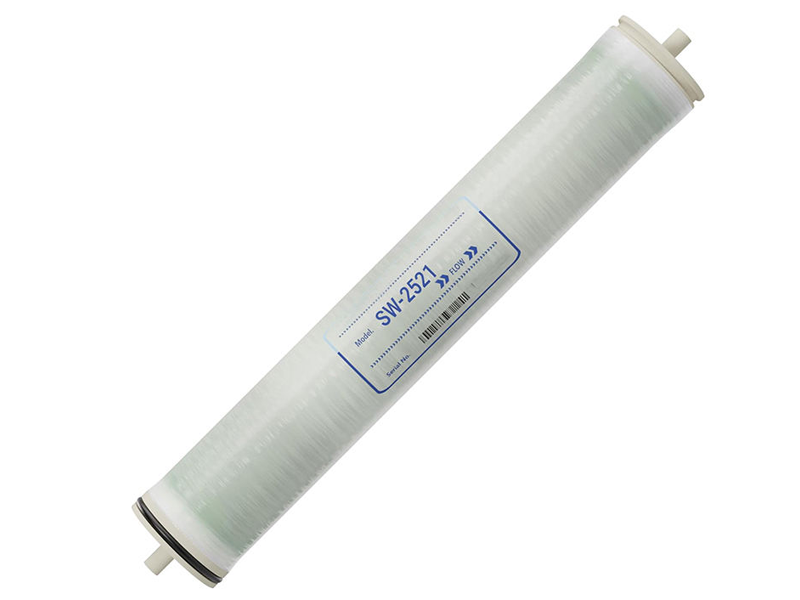

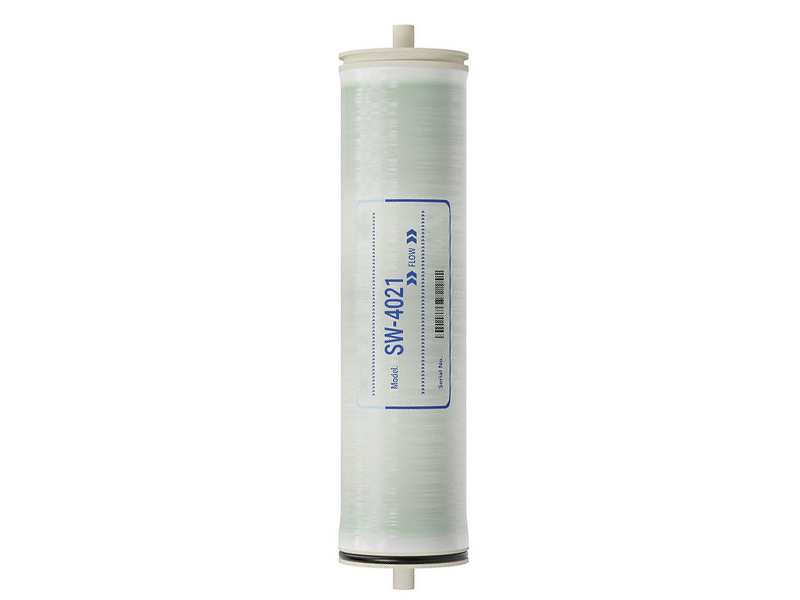

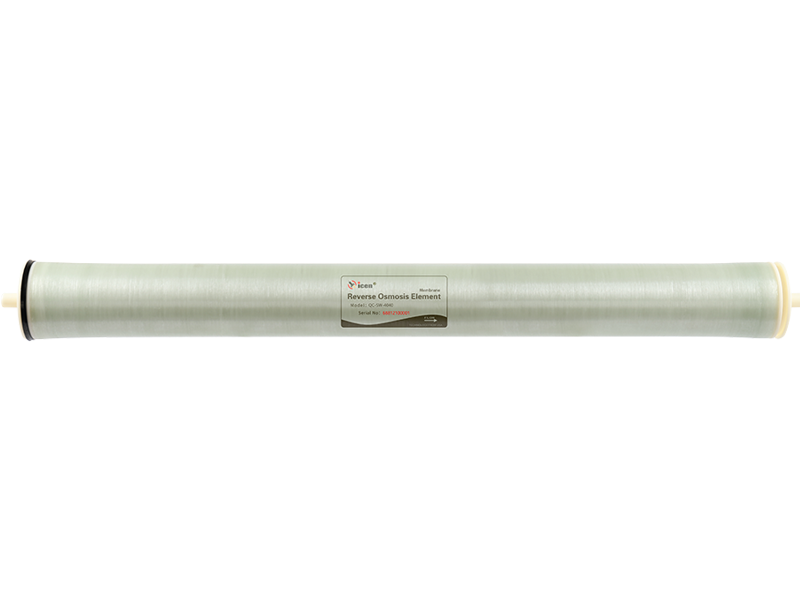

4-Inch SWRO Membranes
Compact elements for marine systems, small desalters, pilot units, resorts, islands, and mobile watermakers.
8”

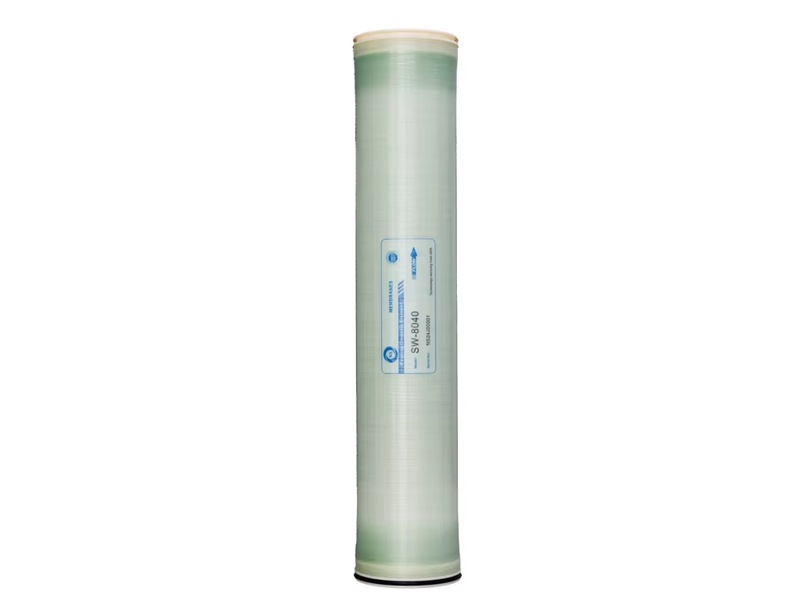

8-Inch SWRO Membranes
Industrial and municipal desalination elements for larger systems and multi-vessel pressure vessel arrays.
HR

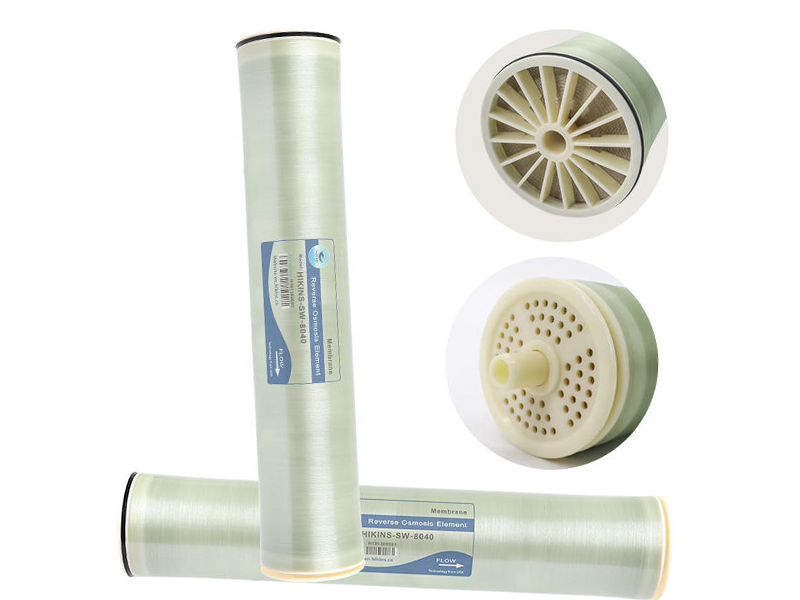

High-Rejection Models
For buyers prioritizing permeate quality, boron reduction strategies, or downstream polishing stability.
Compatibility and RO Membrane Replacement Considerations

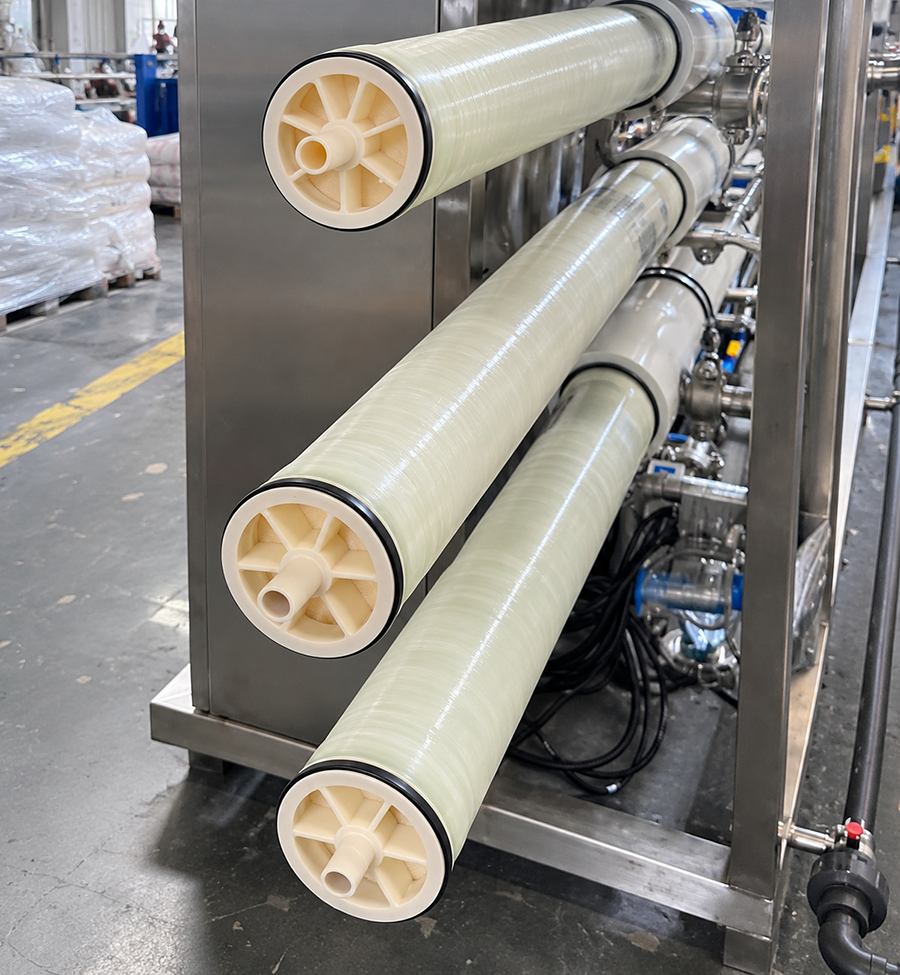

When replacing existing RO elements, matching a nominal 4040 or 8040 size is only the beginning. The buyer should verify actual dimensions, permeate tube connections, interconnectors, brine seals, and pressure vessel requirements.
An alternative product with similar physical dimensions may have different hydraulic characteristics. Installing elements with unsuitable feed-channel resistance or permeate capacity can disturb pressure distribution and operating balance.
Before specifying a replacement, review the original equipment data, including operating history, permeate conductivity, feed pressure, and normalized production figures.
For customers comparing alternative products with Toray RO references, the original manufacturer datasheet should be used to verify dimensions and operating limits. Reference to a branded element does not establish an authorized supplier relationship, genuine branded availability, or interchangeability.
Installation should follow the applicable equipment instructions, including seal orientation, loading sequence, pressure vessel inspection, flushing, and controlled startup. Initial operating measurements provide a useful baseline for subsequent maintenance decisions.
Pretreatment, Membrane Fouling, and Cleaning Requirements
Effective pretreatment protects the membrane against suspended solids, biological growth, scaling, and oxidative damage. The appropriate arrangement depends on local water quality, intake conditions, and seasonal variation.
A pretreatment train may combine media filtration, ultrafiltration, cartridge filter protection, antiscalant dosing, and dechlorination. Activated carbon can be used in certain treatment configurations, although its suitability must be evaluated against biological fouling risks and the overall process.
Membrane surfaces may foul when particles, microorganisms, organic matter, or mineral deposits accumulate. Common indicators include declining normalized permeate flow, increasing differential pressure, and changes in salt passage.
Routine monitoring should include operating pressure, temperature, conductivity, production volume, and pretreatment condition. Cleaning-in-place procedures must follow the element manufacturer’s chemical compatibility limits.
DuPont’s technical manual and Hydranautics’ service bulletins both emphasize appropriate pretreatment, operating monitoring, and manufacturer-specific cleaning procedures.
Cleaning may restore performance affected by removable deposits, but it cannot reliably repair physical damage or irreversible oxidation. A durable operating solution depends on controlling the underlying cause rather than repeatedly cleaning a membrane that continues to foul.
Frequently Asked Questions About Seawater RO Membranes
What is the difference between seawater and brackish water RO membranes?
Seawater membranes are generally selected for higher dissolved-salt concentrations and the corresponding operating pressures. Brackish membrane products typically serve lower-salinity conditions. The appropriate choice depends on feedwater chemistry, target permeate concentration, recovery, and equipment limitations. It is not determined by salinity alone.
How much freshwater can a seawater RO membrane produce?
Production depends on the specific element, operating pressure, temperature, salinity, and recovery. Manufacturers typically publish nominal permeate output in GPD or m³/day under controlled conditions. Actual production should be estimated using model-specific projection software and representative operating inputs rather than simply multiplying the rated capacity by the installed element count.
Can I replace an existing branded RO element with another membrane?
Potentially, but compatibility requires more than matching the nominal diameter and length. Confirm sealing geometry, interconnectors, pressure limits, feed-channel characteristics, and required operating conditions. Replacement feasibility should be checked against original equipment documentation and a suitable engineering projection before purchasing alternative elements.
How do I know when an RO membrane needs cleaning or replacement?
A decline in normalized permeate production, increased differential pressure, or deteriorating salt rejection can indicate a problem. Operators should first investigate pretreatment, scaling, instrumentation, and operating changes. Cleaning may help remove deposits, while persistent deterioration after appropriate corrective action may justify replacement.
Can seawater RO membranes directly produce drinking water?
They can substantially reduce dissolved salts, but drinking-water suitability depends on the complete treatment process. Permeate may require remineralization, pH adjustment, disinfection, and additional contaminant control. Finished water must be tested against applicable drinking-water regulations before distribution or consumption.
What information is required for a seawater RO membrane quotation?
Provide the existing membrane model or required dimensions, feedwater analysis, target capacity, desired permeate quality, operating pressure, temperature, equipment configuration, and required quantity. For replacement projects, photos of the original element label and the pressure vessel information can also help clarify compatibility.
Request a Seawater RO Membrane Quotation
Selecting a seawater RO membrane starts with understanding your operating requirements. Whether you are sourcing elements for a new desalination project or evaluating replacements for existing equipment, provide your feedwater conditions, required capacity, membrane dimensions, and quantity.
Contact us with your technical requirements to discuss suitable membrane options, confirm available product specifications, and request a quotation.
